MS-012F
| Внешний вид | .SLDPRT model, info | Description |
|

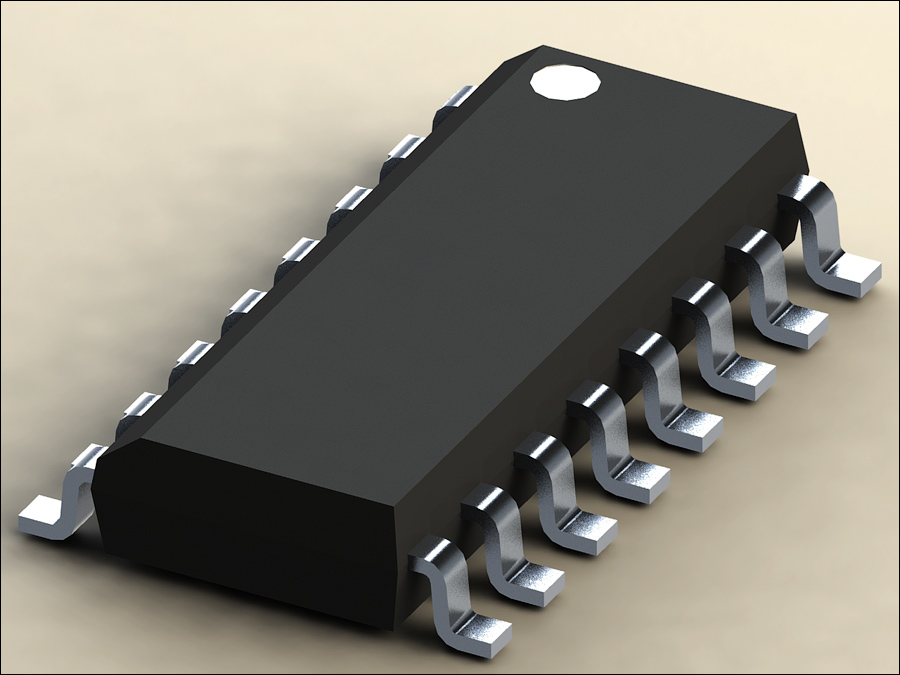

 MS-012F MS-012F
|
Standard - Plastic Small Outline (SO) Family Peripheral Terminals, 1.27 mm Pitch, 3.90 mm Body Width (Mold Flash and End Protrusion). R-PDSO/SOP/SOIC. Item 11.11-801(s) |
MS-012F Variations, STEP models
| JEDEC Name | IPC-7351 Footprint | Description |
 MS-012.AA |
SOIC127P600X175-8 | 8-leads SOIC, 4.9mm package length |
|
MS-012.AB |
SOIC127P600X175-14 | 14-leads SOIC, 8.65mm package length |
|
MS-012.AC |
SOIC127P600X175-16 | 16-leads SOIC, 9.9mm package length |
|
MS-012.BA |
SOIC127P600X175_HS-8 | 8-leads SOIC, 4.9mm package length, Thermal Pad |
|
MS-012.BB |
SOIC127P600X175_HS-14 | 14-leads SOIC, 8.65mm package length, Thermal Pad |
|
MS-012.BC |
SOIC127P600X175_HS-16 | 16-leads SOIC, 9.9mm package length, Thermal Pad |
