MS-013E
| Внешний вид | .SLDPRT model, info | Description |
|

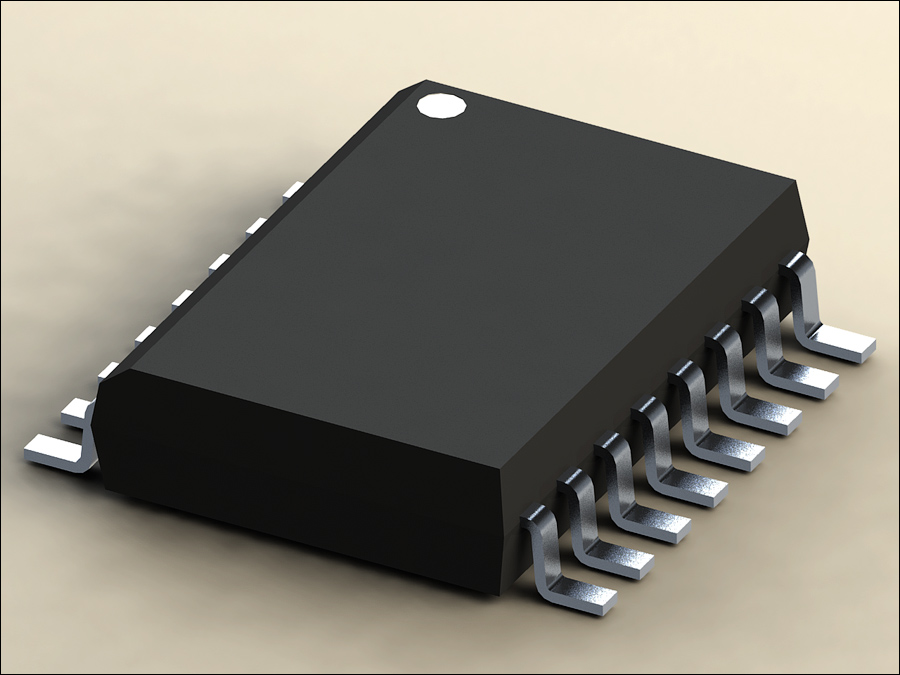

 MS-013E MS-013E
|
Plastic Small Outline (SO) Family Peripheral Terminals, 1.27 mm pitch, 7.50 mm (.300 inch) Body Width. Very Thick Profile. B1R-PDSO/SOP/SOIC. Item 11.11-720(s) |
MS-013E Variations, STEP models
| JEDEC Name | IPC-7351 Footprint | Description |
 MS-013.AA | SOP127P1030X265-16 | 16-leads, 10.5 mm Body Length, 2.65 mm Max Height |
| MS-013.AB | SOP127P1030X265-18 | 18-leads, 11.75 mm Body Length, 2.65 mm Max Height |
| MS-013.AC | SOP127P1030X265-20 | 20-leads, 13 mm Body Length, 2.65 mm Max Height |
| MS-013.AD | SOP127P1030X265-24 | 24-leads, 15.6 mm Body Length, 2.65 mm Max Height |
| MS-013.AE | SOP127P1030X265-28 | 28-leads, 18.1 mm Body Length, 2.65 mm Max Height |
| MS-013.AF | SOP127P1030X265-14 | 14-leads, 9.2 mm Body Length, 2.65 mm Max Height |
| MS-013.BA | SOP127P1030X250_HS-16 | 16-leads, 10.5 mm Body Length, 2.5 mm Max Height, Thermal Pad |
| MS-013.BB | SOP127P1030X250_HS-18 | 18-leads, 11.75 mm Body Length, 2.5 mm Max Height, Thermal Pad |
| MS-013.BC | SOP127P1030X250_HS-20 | 20-leads, 13 mm Body Length, 2.5 mm Max Height, Thermal Pad |
| MS-013.BD | SOP127P1030X250_HS-24 | 24-leads, 15.6 mm Body Length, 2.5 mm Max Height, Thermal Pad |
| MS-013.BE | SOP127P1030X250_HS-28 | 28-leads, 18.1 mm Body Length, 2.5 mm Max Height, Thermal Pad |
| MS-013.BF | SOP127P1030X250_HS-14 | 14-leads, 9.2 mm Body Length, 2.5 mm Max Height, Thermal Pad |
