MS-001D
| Внешний вид | .SLDPRT model, info | Description |
|

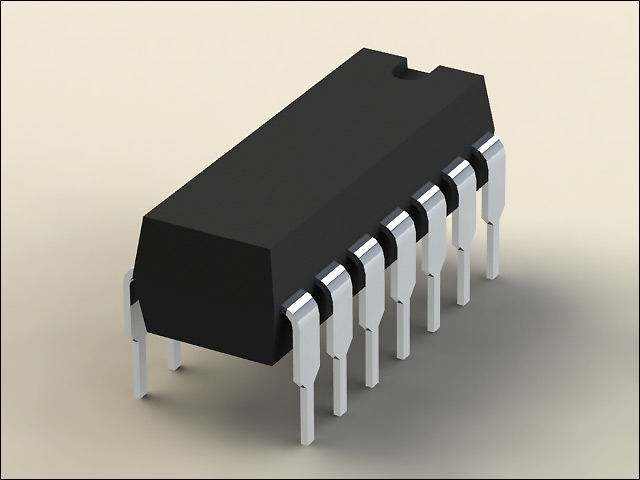

 MS-001D MS-001D
|
Standard - Dual-In-Line Plastic Family .300 inch Row Spacing. R-PDIP-T. Item 11.11-271S |
MS-001D Variations, STEP models
| JEDEC Name | IPC-7351 Footprint | Description |
 MS-001.AA |
DIP14 | 14-leads, 775 mils max package length |
|
MS-001.AB |
DIP16 | 16-leads, 800 mils max package length |
|
MS-001.AC |
DIP18 | 18-leads, 920 mils max package length |
|
MS-001.AD |
DIP20 | 20-leads, 1060 mils max package length |
|
MS-001.AE |
DIP22 | 22-leads, 1165 mils max package length |
|
MS-001.AF |
DIP24 | 24-leads, 1280 mils max package length |
|
MS-001.AG |
DIP28 | 28-leads, 1425 mils max package length |
|
MS-001.BA |
DIP8 | 8-leads, 400 mils max package length |
|
MS-001.BB |
DIP16 | 16-leads, 775 mils max package length |
|
MS-001.BC |
DIP18 | 18-leads, 880 mils max package length |
|
MS-001.BD |
DIP22 | 22-leads, 1060 mils max package length |
|
MS-001.BE |
DIP24 | 24-leads, 1195 mils max package length |
|
MS-001.BF |
DIP28 | 28-leads, 1400 mils max package length |
